Haynes 230 Forging

Haynes 230 Forged Fittings, Flanges, Forged Bars & Shafts, Haynes UNS N06230 Forged Hexagonal Bars, Square Bars Flats, Haynes 230 Forged Circles & Rings, Pipes, Forged Haynes 230 Valves, Fasteners & Haynes 230 Custom Shape Forging Exporter

Haynes 230 Forging Manufacturer | Haynes UNS N06230 Forging | Haynes 230 Forging Exporter

We at Metal Ministry Inc. engaged in manufacturing Haynes 230 Forgings that are fabricated from the raw materials and as per the quality standards. Alloy 230 is a nickel-chromium-tungsten-molybdenum compound that joins great high temperature quality, remarkable protection from nitriding situations and excellent long term thermal stability.

Alloy 230 is effortlessly manufactured and has great framing and welding qualities. Because of Alloy 230 joined properties it is extremely appropriate to a wide assortment of part applications in the aviation and power ventures. Alloy 230 is utilized for burning jars, progress conduits, fire holders, thermocouple sheaths and other essential gas turbine parts.

Haynes 230 Forged Fittings Haynes 230 Forged Round Bars
Haynes 230 Forged Hex Bars Haynes AISI 230 Forged Elbow
AISI 230 Haynes Forged Flanges Haynes 230 Forged Stubends
Haynes UNS N06230 Forged Caps Haynes UNS N06230 Forged Fasteners
Haynes AISI 230 Forged Billets Haynes AISI 230 Forged Reducer
Haynes UNS N06230 Forged Tee Haynes 230 Forged Pipes
Haynes 230 Forged Tubes Haynes UNS N06230 Forged Circles
Haynes 230 Forged Square Bars Haynes 230 Forged Valves
Haynes AISI 230 Forged Flat Bars Haynes UNS N06230 Forged Shafts
Haynes 230 Forged Rings Haynes 230 Forged Discs
Haynes AISI 230 Forged Blocks Haynes UNS N06230 Forged Extrusions
Haynes 230 Forged Custom Shapes Haynes AISI 230 Forged Machined Parts

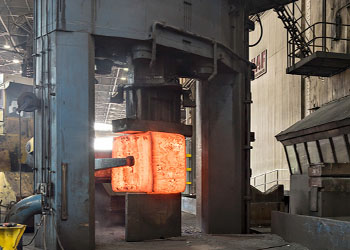

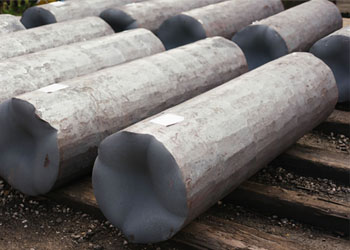

haynes 230 forging manufacturer haynes 230 forged billets manufacturer

Also known as UNS N06230, our Haynes 230 Forgings are accessible to our valuable customers in different range of diameters, wall thicknesses and sizes in customized form and also at quite affordable rates.

Chemical Composition Of Haynes 230

Weight% C Mn Si P S Cr Co Fe Al Ti B Cu La W Mo Ni
Haynes 230 0.05-0.15 0.30-1.0 0.25-0.75 0.03 0.015 20.0-24.0 5.0 3.0 0.20-0.50 0.10 0.015 0.50 0.005-0.05 13.0-15.0 1.0-3.0 Rem

Mechanical Properties Of Haynes 230

Temp°F Yield Strength (0.2% Offset) min Tensile Strength min Elongation (%) Hardness
ksi MPa ksi MPa
RT 55 379 125 862 45 ≤302HB

Physical Properties Of Haynes 230

Physical Property British Units Metric Units
Density 0.324 lb/in3 8.97 g/cm3
Electrical Resistivity 49.2 µohm-in 125 µohm-cm
Modulus of Elasticity 30.6 x 106 psi 211 GPA
Thermal Conductivity 62 Btu-in/ft2-h-°F 8.9 W/m-°C
Specific Heat 0.095 Btu/lb-°F 397 J/Kg-°C

Metal Ministry Inc. exports Haynes 230 Forged Products to Mumbai, Thane, Navi Mumbai, Pune, Pimpri-Chinchwad, Vadodara, Kolkata, Gurgaon, Ahmedabad, New Delhi, Bengaluru, Chennai, Surat, Bhopal, Ulsan, Faridabad, Houston, Dubai, Seoul, Hyderabad, Singapore, Abu Dhabi, Tehran, Calgary, Noida, Riyadh, London, Coimbatore, Jakarta, Istanbul, Bangkok, Kuwait City, Sharjah, Muscat, Edmonton, Busan, Mexico City, Doha, Jeddah, Aberdeen, Cairo, Geoje-si, Perth, Santiago, Chandigarh, Indore, Kuala Lumpur, Rio de Janeiro, Dammam, Melbourne, Madrid, La Victoria, Bogota, Lahore, Los Angeles, Algiers, Chiyoda, Ankara, Ho Chi Minh City, Toronto, Hong Kong, Rajkot, Brisbane, Petaling Jaya, Ernakulam, Secunderabad, Gimhae-si, Al Jubail, Port-of-Spain, Thiruvananthapuram, Milan, Atyrau, Lagos, Hanoi, Howrah, Sydney, Ahvaz, Karachi, New York, Caracas, Vung Tau, Al Khobar, Manama, Montreal, Granada, Courbevoie, Visakhapatnam, Ludhiana, Moscow, Dallas, Haryana, Colombo

Metal Ministry Inc. exports Haynes 230 Forged Products to India, Saudi Arabia, Bangladesh, United States, United Arab Emirates, Canada, Angola, Argentina, Austria, Azerbaijan, Pakistan, Peru, Chile, Spain, France, United Kingdom, Indonesia, Israel, Iran, Kuwait, Mexico, Malaysia, Nigeria, Serbia, Singapore, Taiwan, Chile, Venezuela, Ecuador, Netherlands, Brazil, Colombia, Ghana, Iran, Denmark, Poland, Australia, Afghanistan, Bahrain, Costa Rica, Egypt, Iraq, Jordan, South Korea, Kazakhstan, Sri Lanka, Lithuania, Norway, Oman, Philippines, Poland, Qatar, Russia, Vietnam, South Africa, Nigeria, Mexico, Turkey, Hungary, Algeria, Belarus, Belgium, Bhutan, Bolivia, Bulgaria, Croatia, Czech Republic, Estonia, Finland, Greece, Italy, Japan, Libya, Romania, Thailand, Trinidad & Tobago,Tunisia, Ukraine, Yemen, Hong Kong, Gabon, China, Portugal, Switzerland, New Zealand, Sweden, Slovakia, Kenya, Lebanon, Morocco, Mongolia

All our Haynes 230 Forged Products can be available with Black & Bright Surface as well as Finished surfaces. All these products are available with Relevent Mill Test Certificates, Heat treatment along with UT testing or NDT testing as required by the clients.
