Alloy Steel 4130 Forging

Alloy Steel 4130 Forged Fittings,Flanges, Forged Bars & Shafts, Alloy UNS G41300 Forged Hexagonal Bars, Square Bars Flats, Alloy 4130 Forged Circles & Rings, Pipes, Forged Alloy 4130 Valves,Fasteners & Alloy Steel Custom Shape Forging Exporter

Alloy Steel 4130 Forging Manufacturer | Alloy Steel UNS G41300 Forging | AISI 4130 Alloy Steel Forging Exporter

We at Metal Ministry Inc., the eminent manufacturer and exporter of Alloy Steel 4130 Forging that are being sourced by using high quality of raw material and are known for their durability and reliability of highest quality of industry standard products. AISI 4130 alloy steel contains chromium and molybdenum as strengthening agents. It has low carbon content, and hence it can be welded easily. AISI/SAE 4130 steel grade is a versatile alloy with good atmospheric corrosion resistance and reasonable strength up to around 315º C (600º F). It shows good overall combinations of strength, toughness and fatigue strength

We at Metal Ministry Inc. engaged in offering the various forms to our esteemed clients at affordable price.

Alloy Steel 4130 Forged Fittings Alloy Steel 4130 Forged Round Bars
Alloy Steel 4130 Forged Hex Bars Alloy Steel AISI 4130 Forged Elbow
AISI 4130 Alloy Steel Forged Flanges Alloy Steel 4130 Forged Stubends
Alloy Steel UNS G41300 Forged Caps Alloy Steel UNS G41300 Forged Fasteners
Alloy Steel AISI 4130 Forged Billets Alloy Steel AISI 4130 Forged Reducer
Alloy Steel UNS G41300 Forged Tee Alloy Steel 4130 Forged Pipes
Alloy Steel 4130 Forged Tubes Alloy Steel UNS G41300 Forged Circles
Alloy Steel 4130 Forged Square Bars Alloy Steel 4130 Forged Valves
Alloy Steel AISI 4130 Forged Flat Bars Alloy Steel UNS G41300 Forged Shafts
Alloy Steel 4130 Forged Rings Alloy Steel 4130 Forged Discs
Alloy Steel AISI 4130 Forged Blocks Alloy Steel UNS G41300 Forged Extrusions
Alloy Steel 4130 Forged Custom Shapes Alloy Steel AISI 4130 Forged Machined Parts

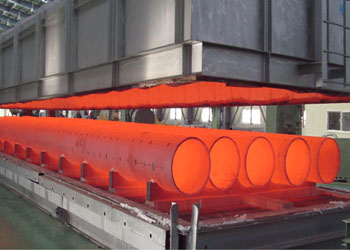

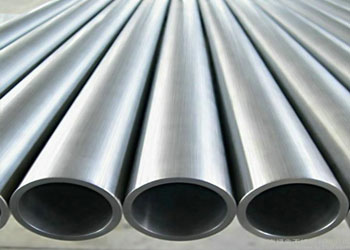

alloy steel 4130 forging manufacturer alloy steel 4130 forged pipe manufacturer

4130 steel commonly referred to as chromoly is a chrome alloy steel with medium carbon content containing .80 – 1.10% chromium as the strengthening agent. 4130 coils and sheets is readily machinable has excellent weldability and offers excellent ductility. 4130 steel sheet is considerably stronger and harder than other standard steel grades and is commonly used in construction of commercial and military aircraft.

Chemical Composition Of Alloy Steel 4130

Standard Grade C Mn P S Si Cr Mo
ASTM A29 4130 0.28-0.33 0.40-0.60 0.035 0.040 0.15-0.35 0.80-1.10 0.15-0.25

Mechanical Properties Of Alloy Steel 4130

Properties Metric
Tensile strength, ultimate 560 MPa
Tensile strength, yield 460 MPa
Modulus of elasticity 190-210 GPa
Bulk modulus (Typical for steel) 140 GPa
Shear modulus (Typical for steel) 80 GPa
Poissons ratio 0.27-0.30
Elongation at break (in 50 mm) 21.50%
Reduction of area 59.6
Hardness, Brinell 217
Hardness, Knoop (Converted from Brinell hardness) 240
Hardness, Rockwell B (Converted from Brinell hardness) 95
Hardness, Rockwell C (Converted from Brinell hardness, value below normal HRC range, for comparison purposes only.) 17
Hardness, Vickers (Converted from Brinell hardness) 228
Machinability (Annealed and cold drawn. Based on 100% machinability for AISI 1212 steel.) 70

Physical Properties Of Alloy Steel 4130

Density (lb / cu. in.) 0.283
Specific Gravity 7.8
Specific Heat (Btu/lb/Deg F – [32-212 Deg F]) 0.114
Melting Point (Deg F) 2610
Thermal Conductivity 22.3
Mean Coeff Thermal Expansion 7
Modulus of Elasticity Tension 29

Metal Ministry Inc. exports Alloy Steel 4130 Forged Products to Mumbai, Thane, Navi Mumbai, Pune, Pimpri-Chinchwad, Vadodara, Kolkata, Gurgaon, Ahmedabad, New Delhi, Bengaluru, Chennai, Surat, Bhopal, Ulsan, Faridabad, Houston, Dubai, Seoul, Hyderabad, Singapore, Abu Dhabi, Tehran, Calgary, Noida, Riyadh, London, Coimbatore, Jakarta, Istanbul, Bangkok, Kuwait City, Sharjah, Muscat, Edmonton, Busan, Mexico City, Doha, Jeddah, Aberdeen, Cairo, Geoje-si, Perth, Santiago, Chandigarh, Indore, Kuala Lumpur, Rio de Janeiro, Dammam, Melbourne, Madrid, La Victoria, Bogota, Lahore, Los Angeles, Algiers, Chiyoda, Ankara, Ho Chi Minh City, Toronto, Hong Kong, Rajkot, Brisbane, Petaling Jaya, Ernakulam, Secunderabad, Gimhae-si, Al Jubail, Port-of-Spain, Thiruvananthapuram, Milan, Atyrau, Lagos, Hanoi, Howrah, Sydney, Ahvaz, Karachi, New York, Caracas, Vung Tau, Al Khobar, Manama, Montreal, Granada, Courbevoie, Visakhapatnam, Ludhiana, Moscow, Dallas, Haryana, Colombo

Metal Ministry Inc. exports Alloy Steel 4130 Forged Products to India, Saudi Arabia, Bangladesh, United States, United Arab Emirates, Canada, Angola, Argentina, Austria, Azerbaijan, Pakistan, Peru, Chile, Spain, France, United Kingdom, Indonesia, Israel, Iran, Kuwait, Mexico, Malaysia, Nigeria, Serbia, Singapore, Taiwan, Chile, Venezuela, Ecuador, Netherlands, Brazil, Colombia, Ghana, Iran, Denmark, Poland, Australia, Afghanistan, Bahrain, Costa Rica, Egypt, Iraq, Jordan, South Korea, Kazakhstan, Sri Lanka, Lithuania, Norway, Oman, Philippines, Poland, Qatar, Russia, Vietnam, South Africa, Nigeria, Mexico, Turkey, Hungary, Algeria, Belarus, Belgium, Bhutan, Bolivia, Bulgaria, Croatia, Czech Republic, Estonia, Finland, Greece, Italy, Japan, Libya, Romania, Thailand, Trinidad & Tobago,Tunisia, Ukraine, Yemen, Hong Kong, Gabon, China, Portugal, Switzerland, New Zealand, Sweden, Slovakia, Kenya, Lebanon, Morocco, Mongolia

All our Alloy Steel 4130 Forged Products can be available with Black & Bright Surface as well as Finished surfaces. All these products are available with Relevent Mill Test Certificates, Heat treatment along with UT testing or NDT testing as required by the clients.
