Alloy Steel 8620 Forging

Alloy Steel 8620 Forged Fittings,Flanges, Forged Bars & Shafts, Alloy UNS G86200 Forged Hexagonal Bars, Square Bars Flats, Alloy 8620 Forged Circles & Rings, Pipes, Forged Alloy 8620 Valves,Fasteners & Alloy Steel Custom Shape Forging Exporter

Alloy Steel 8620 Forging Manufacturer | Alloy Steel UNS G86200 Forging | AISI 8620 Alloy Steel Forging Exporter

Metal Ministry Inc., one of the most leading manufacturer of Alloy Steel 8620 Forging that are being sorced from the best raw materials. 8620 is a low nickel - chromium - molybdenum medium hardenability, case hardening (carburizing) steel, generally supplied in the as rolled condition with a maximum brinell hardness of 280 (Rc30). Characterised by good core strength and toughness in small to medium sections with case hardness up to Rc62 when carburized, hardened and tempered. 8620 can also be used (uncarburised) as a high tensile steel, which when suitably hardened and tempered can be utilized for various applications requiring good tensile strength and reasonable toughness.

Metal Ministry Inc., are engaged in offering to the clients at affordable rates and also with the quality standard.

Alloy Steel 8620 Forged Fittings Alloy Steel 8620 Forged Round Bars
Alloy Steel 8620 Forged Hex Bars Alloy Steel AISI 8620 Forged Elbow
AISI 8620 Alloy Steel Forged Flanges Alloy Steel 8620 Forged Stubends
Alloy Steel UNS G86200 Forged Caps Alloy Steel UNS G86200 Forged Fasteners
Alloy Steel AISI 8620 Forged Billets Alloy Steel AISI 8620 Forged Reducer
Alloy Steel UNS G86200 Forged Tee Alloy Steel 8620 Forged Pipes
Alloy Steel 8620 Forged Tubes Alloy Steel UNS G86200 Forged Circles
Alloy Steel 8620 Forged Square Bars Alloy Steel 8620 Forged Valves
Alloy Steel AISI 8620 Forged Flat Bars Alloy Steel UNS G86200 Forged Shafts
Alloy Steel 8620 Forged Rings Alloy Steel 8620 Forged Discs
Alloy Steel AISI 8620 Forged Blocks Alloy Steel UNS G86200 Forged Extrusions
Alloy Steel 8620 Forged Custom Shapes Alloy Steel AISI 8620 Forged Machined Parts

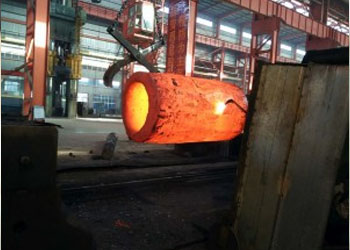

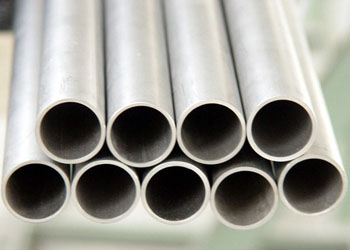

alloy steel 8620 forging manufacturer alloy steel 8620 forged tubes manufacturer

With an objective to stand high on all the requisites and desires of our honored clients, we are thoroughly involved in bringing forth a wide collection of Alloy Steel 8620 Forging products. As a manufacturer, provider, stockiest and exporter, we offer these alloy steel forgings in specially designed sizes and thicknesses according to the correct requests of our regarded customers. Steel 8620 is suited for applications which require a combination of toughness and wear resistance.

Chemical Composition Of Alloy Steel 8620

C% Carbon
0.18 – 0.23
Mn% Manganese
0.70 – 090
P% Phosphorus
0.040 max
S% Sulfur
0.040 max
Si% Silicon
0.20 – 0.35
Ni% Nickel
0.40 – 0.70
Cr% Chromium
0.40 – 0.60
Mo% Molybdenum
0.15 – 0.25

Mechanical Properties Of Alloy Steel 8620

Properties Metric Imperial
Tensile strength 530 MPa 76900 psi
Yield strength 385 MPa 55800 psi
Elastic modulus 190-210 GPa 27557-30458 ksi
Bulk modulus (typical for steel) 140 GPa 20300 ksi
Shear modulus (typical for steel) 80 GPa 11600 ksi
Poisson's ratio 0.27-0.30 0.27-0.30
Izod Impact 115 J 84.8
Hardness, Brinell 149 149
Hardness, Knoop (converted from Brinell hardness) 169 169
Hardness, Rockwell B (converted from Brinell hardness) 80 80
Hardness, Vickers (converted from Brinell hardness) 155 155
Machinability (hot rolled and cold drawn, based on 100 machinability for AISI 1212 steel) 65 65

Physical Properties Of Alloy Steel 8620

Density (lb / cu. in.) 0.283
Specific Gravity 7.8
Specific Heat 0.1
Melting Point (Deg F) 2600
Thermal Conductivity 26
Mean Coeff Thermal Expansion 6.6
Modulus of Elasticity Tension 31

Metal Ministry Inc. exports Alloy Steel 8620 Forged Products to Mumbai, Thane, Navi Mumbai, Pune, Pimpri-Chinchwad, Vadodara, Kolkata, Gurgaon, Ahmedabad, New Delhi, Bengaluru, Chennai, Surat, Bhopal, Ulsan, Faridabad, Houston, Dubai, Seoul, Hyderabad, Singapore, Abu Dhabi, Tehran, Calgary, Noida, Riyadh, London, Coimbatore, Jakarta, Istanbul, Bangkok, Kuwait City, Sharjah, Muscat, Edmonton, Busan, Mexico City, Doha, Jeddah, Aberdeen, Cairo, Geoje-si, Perth, Santiago, Chandigarh, Indore, Kuala Lumpur, Rio de Janeiro, Dammam, Melbourne, Madrid, La Victoria, Bogota, Lahore, Los Angeles, Algiers, Chiyoda, Ankara, Ho Chi Minh City, Toronto, Hong Kong, Rajkot, Brisbane, Petaling Jaya, Ernakulam, Secunderabad, Gimhae-si, Al Jubail, Port-of-Spain, Thiruvananthapuram, Milan, Atyrau, Lagos, Hanoi, Howrah, Sydney, Ahvaz, Karachi, New York, Caracas, Vung Tau, Al Khobar, Manama, Montreal, Granada, Courbevoie, Visakhapatnam, Ludhiana, Moscow, Dallas, Haryana, Colombo

Metal Ministry Inc. exports Alloy Steel 8620 Forged Products to India, Saudi Arabia, Bangladesh, United States, United Arab Emirates, Canada, Angola, Argentina, Austria, Azerbaijan, Pakistan, Peru, Chile, Spain, France, United Kingdom, Indonesia, Israel, Iran, Kuwait, Mexico, Malaysia, Nigeria, Serbia, Singapore, Taiwan, Chile, Venezuela, Ecuador, Netherlands, Brazil, Colombia, Ghana, Iran, Denmark, Poland, Australia, Afghanistan, Bahrain, Costa Rica, Egypt, Iraq, Jordan, South Korea, Kazakhstan, Sri Lanka, Lithuania, Norway, Oman, Philippines, Poland, Qatar, Russia, Vietnam, South Africa, Nigeria, Mexico, Turkey, Hungary, Algeria, Belarus, Belgium, Bhutan, Bolivia, Bulgaria, Croatia, Czech Republic, Estonia, Finland, Greece, Italy, Japan, Libya, Romania, Thailand, Trinidad & Tobago,Tunisia, Ukraine, Yemen, Hong Kong, Gabon, China, Portugal, Switzerland, New Zealand, Sweden, Slovakia, Kenya, Lebanon, Morocco, Mongolia

All our Alloy Steel 8620 Forged Products can be available with Black & Bright Surface as well as Finished surfaces. All these products are available with Relevent Mill Test Certificates, Heat treatment along with UT testing or NDT testing as required by the clients.
